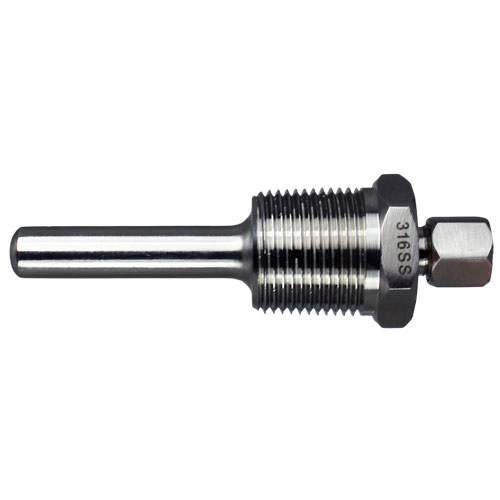

The 3/4 inch BSPT threaded thermowells have an integrated compression fitting that includes a single compression olive to suit 6.0mm diameter tubes. They are fabricated from 316 Stainless Steel material and supplied with a male process thread (complete with hexagon) which screws into the process.

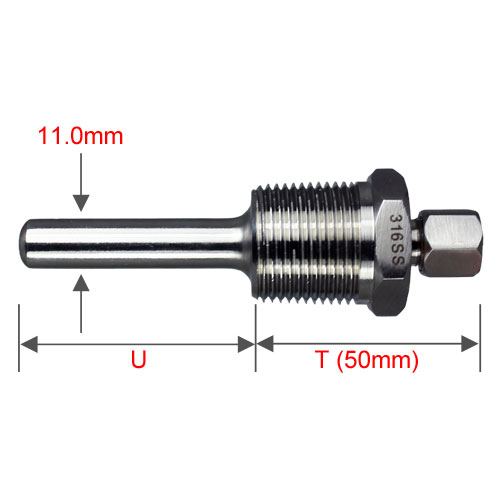

The stem has an outside diameter of 11mm (± 0.2mm) and a 7mm inside diameter.

The pockets are stocked in standard lengths up to 200mm so can normally be supplied ex-stock if required urgently.

Note: Minimum sensor length = stem length (U) + 50mm. E.g. 50mm length thermowell is for a 100mm sensor.
