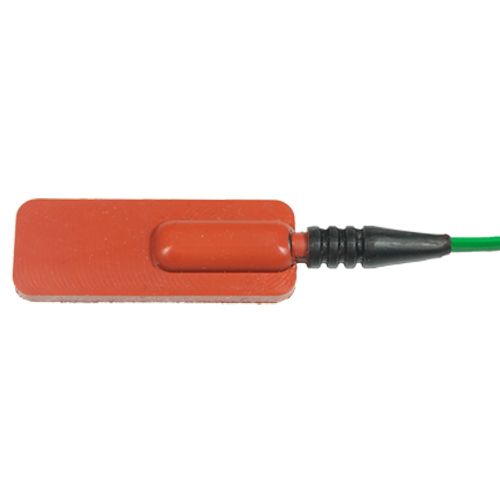

Standard Silicone Patch Thermocouple Sensor

Description

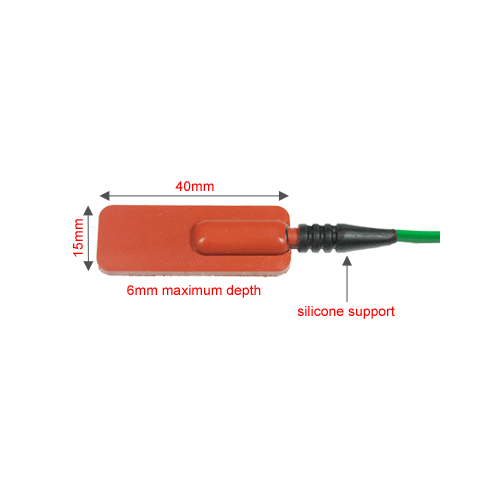

Standard sized, self adhesive silicone patch thermocouple sensor, commonly used for pipe or surface measurement. The sensor can easily be trimmed if a smaller footprint is required. Dimensions: 40mm (L) x 15mm (W) x 6mm max depth.

Can be supplied with a PFA, fibreglass or fibreglass with stainless steel braid insulated extension cable. Standard cable length is 2 metres, however custom lengths can be supplied to suit the application. Includes a silicone cable support.

Operating range: -30°C to +200°C.

This product can be supplied with a calibration certificate.

Features

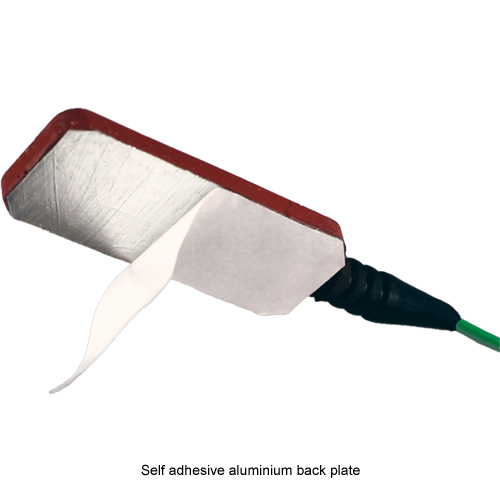

Self adhesive
-30°C to +200°C operating range
Commonly used for pipe or surface measurement
40mm (L) x 15mm (W) x 6mm max depth
Includes silicone cable support

Bespoke Options

This product can be custom-made and/or configured to your requirements using the options below. Each option has a code that is used to construct a final order code. An example order code is included.

Item	Options	Code
Sensor Type	Standard Silicone Patch Thermocouple Sensor	TPA
Conductor/Thermocouple Type	Type K	K
	Type J	J
	Type T	T
Cable Length (mm)	As required to suit your application	e.g. 2000
Cable Insulation	Single Pair PFA, Flat Pair	CT45
	Single Pair Fibreglass, Flat Twin	CG32
	Single Pair Fibreglass, Flat Twin, Stainless Steel Braid	CG39
Optional Thermocouple Connector (supplied attached to cable)	Miniature Thermocouple Plug (Types K, J, T)	FMP
	Standard Thermocouple Plug (Types K, J, T)	RSP
