WiFi Vaccine Temperature Monitoring Kit

Product Code: HDT-WiFi-VAC

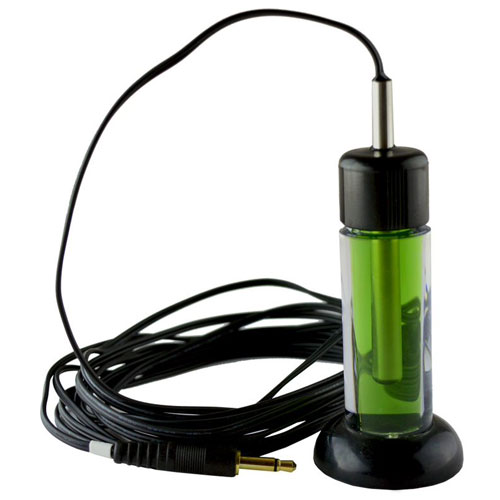

The HDT-WiFi-VAC measures the temperature of a probe sunk into a glycol bottle, designed to mimic vaccine samples. Data from the probe is streamed wirelessly over any compatible WiFi network and can be viewed on a PC using free software or on the EasyLog Cloud or App.

To configure the sensor for use on a given wireless network, either connect it via USB to a PC running EasyLog WiFi software on the network, or configure wirelessly using the EasyLog Cloud app on a mobile phone with access to the network. The sensor can then be placed anywhere within range of the network, In a typical usage scenario, the probe is placed next to the vaccines within a fridge, and the ribbon cable fed out to the logger attached to the outside of the fridge using its magnetised wall bracket; the cable is deliberately thin so as not to interfere with the fridge seal. If the sensor temporarily loses connectivity with the network, it will log readings until it is able to communicate again with the PC application or EasyLog Cloud (max 30 days at 10 second sample interval).

The sensor is IEEE 802.11bgn (2.4GHz) compliant (MAC Address starting 98:8B:AD:2 only), supports WEP, WPA/WPA2 encryption and enterprise networks (PEAP, TTLS, FAST).

The HDT-WiFi-VAC has a protection rating of IP42 and the probe IP67. The unit is freestanding, but can be attached to a wall or surface using the bracket provided. The unit can be clipped in and out of the bracket as required.

Lascar Product Code: EL-WiFi-VAC

  • Features
  • Technical
  • Documents
  • Software
    • WiFi datalogger with external thermistor probe in a glycol bottle to mimic a vaccine
    • Temperature measurement range -40°C to +60°C (-40°F to +140°F)
    • Wirelessly stream and view temperature data on the EasyLog Cloud, App or on a PC
    • Easy sensor set-up using free PC software application
    • Configurable high and low alarms with indicator
    • Sensor memory stores all data even if WiFi is temporarily disconnected
    • Supplied with probe (3m cable), wall mounting bracket, USB cable
    • Calibration certificate supplied at 2°C and 8°C
  • Technical Details
    Battery Life Rechargeable, > 6 months, mains powered option
    USB Supply Voltage (@500mA) 4.5V D.C. (min), 5V D.C. (typical), 5.5V D.C. (max)
    Operating Temperature Range -20°C to +60°C (-4°F to +140°F)
    Logging Period (user configurable) User configurable between 10 seconds and 12 hours
    Transmission Period (user configurable) User configurable between 1 minute and 24 hours
    Temperature Measurement Range -40°C to +60°C (-40°F to +140°F)
    Temperature Measurement Accuracy ±0.1°C (-10°C to +60°C), ±0.2°F (+14°F to +140°F)
    ±0.6°C (-40°C to +60°C), ±1.1°F (+40°F to +140°F)
    Temperature Measurement Resolution 0.01°C
    Temperature Display Resolution 0.01
    IP Rating Logger IP42, Probe Tip IP67 (bung fully inserted, not permanently powered, probe connector fitted and fully inserted, device mounted vertically)
    Dimensions 82mm x 70mm x 23mm
    Calibration Certificate Supplied at 2°C and 8°C
  • Free EasyLog WiFi software

    Free EasyLog WiFi software

    Easy to install and use, the EasyLog WiFi software allows connection of sensors to a WiFi network. The user can select where data is stored during the setup process (computer or cloud). EasyLog Cloud accounts can be created during setup.

    Compatible with 32-bit and 64-bit versions of Microsoft Windows 7, 8 and 10

    EasyLog Cloud App (Android)

    EasyLog Cloud App (Android)

    The EasyLog Cloud app extends the ability to remotely access your data from WiFi sensors to Android users. All the convenience of the EasyLog Cloud, now in your pocket with new features just for the App.

    EasyLog Cloud App (iOS)

    EasyLog Cloud App (iOS)

    The EasyLog Cloud app on the App Store allows you to remotely access data from your WiFi sensors on your Apple iPhone and iPad.
