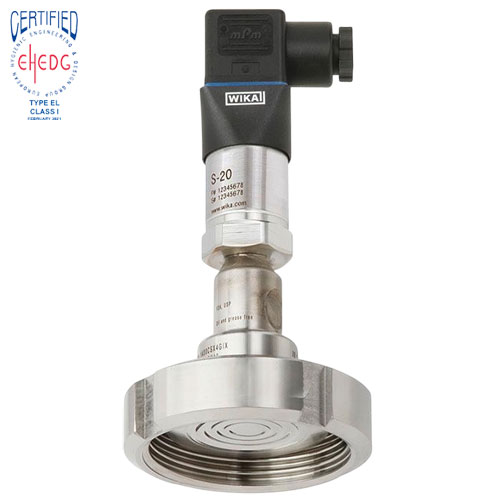

WIKA Pressure Transmitter & Diaphragm Seal System

Description

316 stainless steel body. 4-20 mA 2-wire output. Bottom entry, direct mount assembly. DIN 11851 connection with female grooved nut. Ranges available from 0...1 bar to 0...25 bar. Accuracy: 0.5% of span. Stainless steel 316L wetted parts, IP65 rated.

The WIKA DSS18T high quality pressure transmitter with mounted diaphragm seal is designed for measuring gases, vapours, a wide range of liquids, pastes, powders and crystallising media in hygienic applications where preventing bacterial growth is essential. The system is also designed to withstand SIP cycles, typically up to +130°C during sterilisation.

Commonly used across hygienic processing industries such as dairy and dairy products, for pressure measurement in various process steps, such as filtration, separation pasteurisation and in filling systems as well as in breweries and soft drink production, where pressure is monitored on tanks, pipelines, filters and skids. The flush, dead-space-free process connection supports effective cleaning and sterilisation, helping to reduce the risk of product contamination and supporting CIP/SIP regimes.

This product can be supplied with a calibration certificate.

Features

4-20mA, 2-wire output
DC 8 ... 35 V supply voltage
Gauge pressure and compound options
0...1 bar to 0...25 bar (0...15 psi to 0...300 psi)
Female grooved union nut per DIN 11851
IP 65 rated
Suitable for SIP to +130°C

Standard Options

Listed below are the standard options available for this product.

Design	High-quality pressure sensor welded to diaphragm seal
Case Material	Stainless steel 1.4571 [316Ti]
Current Output	4...20 mA (2-wire)
Power Supply	DC 8 ... 35 V
Accuracy at reference conditions	≤ ±0.5 % of span (refer to data sheet DS 95.05)
Electrical Connection	Angular connector DIN 175301-803 A
Assembly	Direct, lower mount
System Fill Fluid	KN 92 Medicinal white mineral oil; for pharmaceutical and food applications; FDA, USP, EP
Process Temperature	min. +10°C
Process Temperature	max. +80°C; for sterilisation (SIP) max. +130°C
Ambient Temperature	min. +10°C
Ambient Temperature	max. +40°C
Pipe Standard	Pipes per DIN 11850 row 2
Process Connection	Milk thread fitting following DIN 11851 (grooved union nut) DN25 PN40 (for pipe outer Ø x wall thickness 29 x 1.5) DN40 PN40 (for pipe outer Ø x wall thickness 41 x 1.5) DN50 PN25 (for pipe outer Ø x wall thickness 53 x 1.5)
Wetted Parts	Stainless steel 1.4435 (316L); UNS S31603
Surface Roughness	Ra ≤ 0,76µm (Ra 0.30µin.) according to ASME BPE SF3 (welding seam excluded)
Ingress Protection	IP 65 per EN 60529 / IEC 60529 (with mating connector)
Approvals	EHEDG Hygienic Equipment Design
Certification [optional]	Food & Beverage package (3.1 calibration, 3.1 material; 2.2 FDA fill fluid) Pharma package (3.1 calibration, 3.1 material, 2.2 state of the art; 2.2 surface, 2.2 FDA fill fluid)
