Ceramic Beaded Welded Tip Thermocouple Sensors

Description

Replacement Thermocouple Inserts.

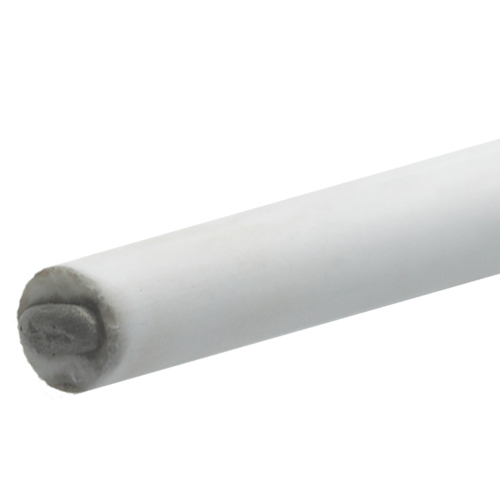

An exposed welded tip junction, insulated with ceramic twin or four-bore insulators.

Commonly used as replacement inserts for THD (Metal Sheathed Heavy-Duty Thermocouple Sensor) and TCR (Ceramic Sheathed Thermocouple Sensor) assemblies.

This product can be supplied with a calibration certificate.

Features

Commonly used as replacement inserts for THD and TCR sensors
Thermocouple types K, N, R, S and B
Custom lengths available

Insulator Materials

Impervious Aluminous Porcelain (+1400°C)
Impervious Recrystalised Alumina (+1700°C)

Bespoke Options

This product can be custom-made and/or configured to your requirements using the options below. Each option has a code that is used to construct a final order code. An example order code is included.

Item	Options	Code
Sensor Type	Ceramic Beaded Welded Tip Thermocouple	TI
Conductor/Thermocouple Type	Type K	K
	Type N	N
	Type R	R
	Type S	S
	Type B	B
Insulator Material	Impervious Aluminous Porcelain (+1400°C)	AP
Insulator Material	Impervious Recrystalised Alumina (+1700°C)	RA
Length (mm)	As required to suit your application	e.g. 500
