Steel Case Utility Pressure Gauge (40mm âˆ…)

Description

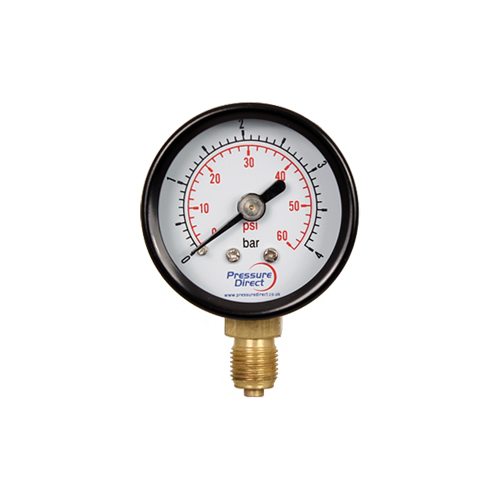

40mm diameter pressure gauge. Bottom or back entry. 1/8 inch BSPP process entry thread. Ranges available from 1 bar to 25 bar (15 psi to 360 psi). IP 51 rated.

The Pressure Direct GMD range of gauges are suitable for use in all gaseous and liquid media that will not attack the copper alloy parts or obstruct the pressure system.

Supplied with a robust black steel case and clear glass window.

Commonly used for pneumatic, heating, ventilation, air-conditioning and medical engineering applications.

This product can be supplied with a calibration certificate.

Features

40mm diameter
Bottom or back entry
Dual scale pressure range (bar/psi)
1/8 inch BSP Parallel process entry thread
0...1 bar to 0...25 bar (0...15 psi to 0...360 psi)
Robust black steel case
IP 51 rated

Specification

Design	EN 837-1
Accuracy Class	2.5
Movement	Copper Alloy
Process Connection	BSP Parallel, Brass (1/8")
Pressure Element	Copper Alloy
Pressure Limitation	Steady: 3/4 x full scale value
	Fluctuating: 2/3 x full scale value
	Short Time: full scale value
Dial	40mm ∅, aluminium, white, with pointer stop pin
Pointer	Aluminium, black
Case	Steel, black
Window	Glass
Temperature Effect	When measuring system temperature deviates from reference temp. (+20°C): Max. ±0.6 %/10 K of the span
Ingress Protection	IP 51 per EN 60529 / IEC 60529
Operating Temperature	Ambient: -20°C to +60°C

Bespoke Options

This product can be custom-made and/or configured to your requirements using the options below. Each option has a code that is used to construct a final order code. An example order code is included.

40mm Diameter, 1/8 inch BSPP, Dual Scale

Pressure Range (bar)	Pressure Range (psi)	Order Code (Back Entry)	Order Code (Bottom Entry)
0...1	0...15	GMD01R	GMD01B
0...2	0...30	GMD02R	GMD02B
0...4	0...60	GMD04R	GMD04B
0...7	0...100	GMD07R	GMD07B
0...10	0...150	GMD10R	GMD10B
0...16	0...230	GMD16R	GMD16B
0...20	0...300	GMD20R	GMD20B
0...25	0...360	GMD25R	GMD25B
