Miniature PCB Socket - Side Mounting

Product Code: FCB3

Miniature PCB jack/socket for thermocouple and RTD circuits. Side mounting. Designed for direct soldering onto printed circuit boards. Temperature rating -50...+220°C max.

Datasheet

Description

Features

Standard Options

Enquiry

Enquiry List

Do you have an enquiry about this product and/or other products? Add them to an enquiry list and send to us. You can edit your list at any time before sending.

Miniature PCB Socket - Side Mounting (FCB3)

Message:

Quantity:

Description
Features
Standard Options

Description

Miniature PCB jack/socket for thermocouple and RTD circuits. Side mounting.

Designed for direct soldering onto printed circuit boards.

Temperature rating -50...+220°C max.

Sensor Type	Material	Colour	Code
Thermocouple Type K	NiCr	NiAl	Green	Yellow	FCB3-K
Thermocouple Type J	Fe	CuNi	Black	Black	FCB3-J
Thermocouple Type T	Cu	CuNi	Brown	Blue	FCB3-T
Thermocouple Type N	NiCrSi	NiSi	Pink	Orange	FCB3-N
Thermocouple Type E	NiCr	CuNi	Violet	Violet	FCB3-E
Thermocouple Type R/S	Cu	Alloy#11	Orange	Green	FCB3-R
Thermocouple Type B	Cu	Cu	Grey	Grey	FCB3-B
Thermocouple Type C	CPX	CNX	Red	Red	FCB3-C
RTD	Cu	Cu	White	White	FCB3-U

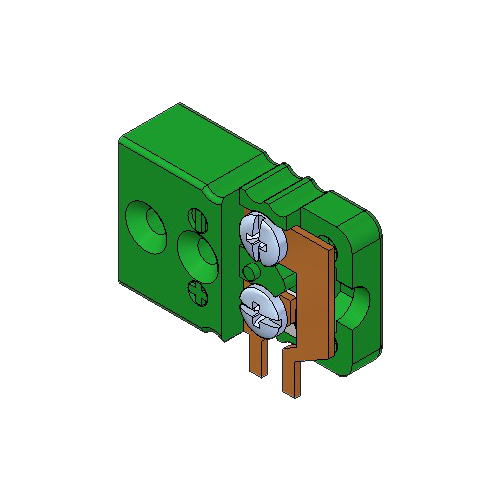

IEC Type K (green) images shown for illustrative purposes only

Note: PCB connectors may transition to silver-plated copper pins to improve performance. Contact sales for further updates.
